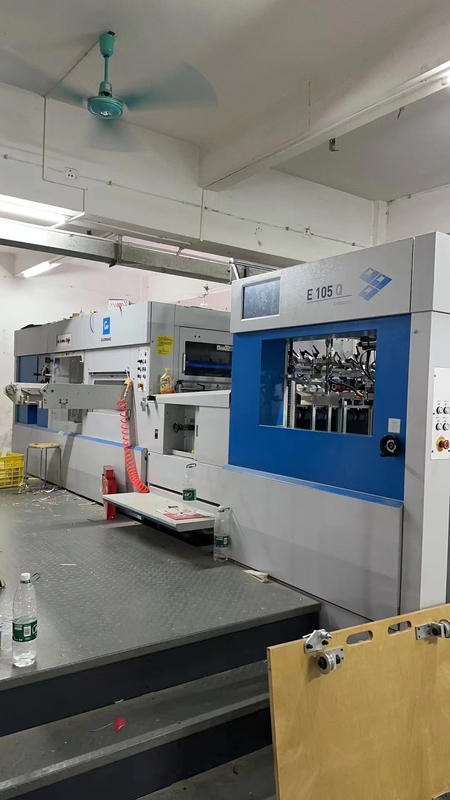

GUOWANG E 1050Q Automatic Die Cutting & Stripping Machine

E 105 Q

Maximum paper format: 1050 × 760 mm

Minimum paper format: 450 × 370 mm

Maximum cutting width: 1045 × 745 mm

Die-cut frame size: 1100 × 770 mm

Die-cut steel plate: 3+1 mm

Height of steel wire (die cutter): 23.8 mm

The first cutting line of the die: 23 mm

Dental chip bite size: 7-17 mm

White cardboard specifications: 90-2000 g/㎡ Card size: 0.1-3 mm

Corrugated paper specifications; ≤4 mm

Maximum working pressure: 300 t

Maximum die cutting speed: 7500 S/H

Accuracy: ±0.075 mm

Paper stack height (including tray): 1600 mm

Paper stack height (including tray): 1350 mm

Main motor power: 11 KW

Machine power: 20 KW
